A dark patch in a photograph might be a distant doorway or a mark on a nearby wall. A second photograph, taken from a different position, offers a clue: nearby points shift more between views than distant ones. Turning that shift into a depth estimate was one of computer vision’s early concrete goals. The geometry was straightforward compared with the task of finding the right points to measure.
Stereo reconstruction has two parts. A system first identifies points in the two images that depict the same place in the world. It then uses the cameras’ positions and imaging geometry to infer three-dimensional structure. Once the matches are known, the depth calculation is relatively direct. In real photographs, finding those matches is harder: similar-looking windows, blank walls, shadows, and surfaces hidden from one camera can all defeat a rule that works on a diagram.
From binocular geometry to a computational problem
The underlying observation predates digital computers. Human binocular vision draws on two slightly separated viewpoints, and photographic surveying has long used overlapping images to recover spatial measurements. Early computer-vision researchers inherited that geometry but faced a new requirement: the machine, rather than a human operator, had to decide which marks in two images belonged together. Stereo geometry was established knowledge; automated correspondence and reconstruction remained research problems.

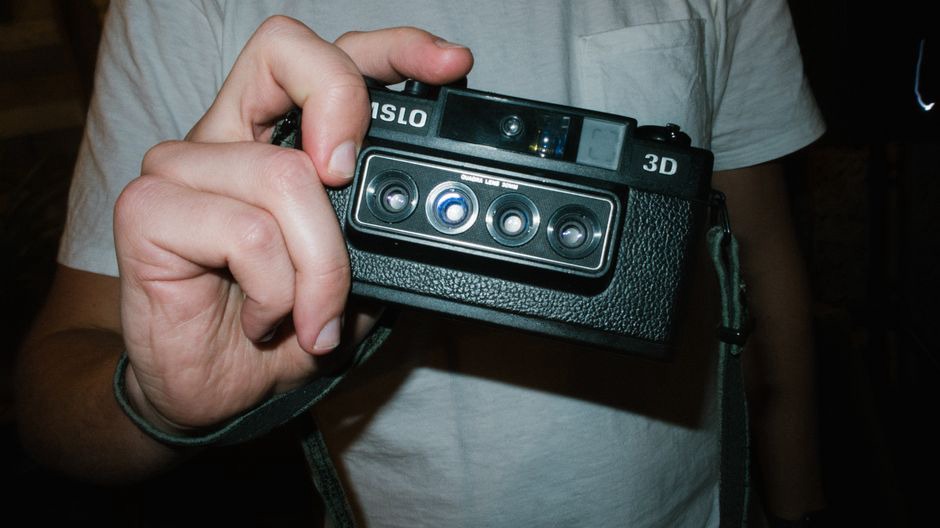

Imagine two cameras with parallel optical axes, separated horizontally by a known baseline. A point in front of them appears at different horizontal coordinates in the two images. The difference is its disparity. For an idealized rectified pair, depth is approximately Z = fB/d, where f is focal length expressed in pixel units, B is the baseline, and d is disparity in pixels. Larger disparity indicates a nearer point. With the same camera setup, a point twice as far away produces about half the disparity.
That compact equation does not turn any pair of photographs into measurements in meters. Metric depth requires a known baseline and camera parameters. Units must agree, too: focal length in millimeters cannot simply be combined with disparity in pixels. Cameras outside the simplified parallel arrangement need their actual geometry accounted for before the one-line formula is useful.
Why the matching step became central
Suppose a corner appears at pixel 120 in the left image. Pairing it with a plausible corner at pixel 112 in the right image gives a disparity of eight pixels; pairing it with one at 116 gives four. Those choices imply depths differing by a factor of two. Detecting corners is not enough—the system has to assign each one to the right partner.
Camera geometry narrows the search. If both cameras observe the same physical point, its counterpart in the other image must lie along an epipolar line. Rectification resamples the images so corresponding epipolar lines run along the same image rows. Matching becomes a search across a row rather than the whole image. For the geometric background, the overview of epipolar geometry explains how camera position constrains that search.
An epipolar line cannot choose among several identical-looking candidates by itself. Researchers used assumptions about ordinary surfaces and images to narrow the choices:
- Similarity: corresponding locations should have compatible brightness or local appearance, allowing for imaging differences.
- Uniqueness: a visible surface point should ordinarily have one match in the other view, not several.
- Ordering: matches along many epipolar lines tend to retain their left-to-right order, though occlusion and some scene geometries complicate the rule.
- Continuity: neighboring points on the same surface tend to have similar disparities, except at depth boundaries.
None is a universal law. A highlight can move across a glossy surface as the viewpoint changes, even though the surface stays put. A repeating fence offers several convincing matches. A foreground object may hide background texture from one camera but not the other. Much of stereo’s history lies in making these assumptions explicit and finding their limits.
Early strategies: edges, regions, and constraints
In the 1960s and 1970s, limited computing power made selected features more practical to match than every pixel. Edges and line segments reduced an image to a smaller set of potentially distinctive structures. But which edge in the right image belonged to one in the left? And was an apparent edge a change in shape, a shadow, or a surface marking?
An influential step was to treat interpretation as a constrained search rather than a series of isolated guesses. David Marr and Tomaso Poggio’s late-1970s work connected stereo matching with ideas about early visual processing. In their cooperative approach, candidate matches could support compatible neighbors and inhibit conflicting ones. This did not amount to a full explanation of biological vision. It showed how local evidence could be assessed alongside uniqueness and continuity constraints.
Edge-based matching exposed a trade-off. A sharp edge can be located more precisely than an indistinct patch, but it might mark a change in illumination or paint rather than depth. A uniformly colored object may offer few edges at all. A reconstruction limited to conspicuous features leaves much of the scene without depth estimates.
Coarse-to-fine matching
Another practical approach began with large image structures and refined their positions at smaller scales. A broad match in a reduced-resolution image could limit the search at full resolution and cut computation. Yet reducing resolution might erase a thin structure or merge nearby edges. If a distinction vanished at the coarse scale, later refinement might never recover it. Multiscale processing helped manage ambiguity; it did not guarantee a correct match.
Calibration made reconstruction measurable
A stereo system needs a model of how each camera maps three-dimensional points onto its image. Intrinsic parameters include focal length and principal point; extrinsic parameters describe the cameras’ relative positions and orientations. Lens distortion adds further deviations. Calibration estimates these quantities from known arrangements or observed correspondences, allowing researchers to test whether an inferred depth has physical meaning.
Ideal parallel-camera examples can obscure how much calibration matters. A small rotational misalignment can put corresponding points on different image rows. A baseline error changes the depth scale. When disparity is only a few pixels, even a one-pixel matching error can cause a substantial depth error; distant surfaces, with their small disparities, are especially sensitive. For an ideal stereo pair and a fixed disparity error, the magnitude of depth uncertainty grows roughly with fB/d². Camera spacing, resolution, and working distance therefore have to be considered together.
In the 1980s, work in photogrammetry and computer vision increasingly joined accurate camera modeling with automated matching. Radu Horaud, Olivier Faugeras, and other researchers explored geometric constraints and reconstruction methods, while Roger Tsai’s calibration work became widely known for practical camera modeling. These contributions addressed different parts of the system: good matching cannot rescue misinterpreted camera geometry, and excellent calibration cannot distinguish identical-looking patches.
From sparse points to disparity maps
A sparse reconstruction assigns depth to selected points or features. That may suffice for a few landmarks or an object’s outline, but it does not describe every visible surface. Denser methods try to assign disparity across much more of the image. One common approach compares small neighborhoods, or windows, around candidate pixels and treats similar-looking windows as possible matches.
Window size brings a compromise. A large window contains more texture and may stabilize a match in a fairly plain region, but it can cross a depth boundary and mix foreground with background. A small window better preserves that boundary but can be noisy or ambiguous. The tension between dependable evidence and sharp spatial detail appeared well before modern dense-depth software.
By the 1990s, researchers increasingly framed stereo matching as an optimization problem. A method could assign each candidate disparity a cost based on image similarity, then penalize abrupt changes between neighboring disparities. Dynamic programming offered ways to search along image rows while accounting for unmatched, occluded regions. Later global and semi-global approaches considered spatial consistency more broadly. All built on earlier constraints without settling the question of when smoothness should give way to a real surface boundary.
For a closer look at the mechanics rather than the historical development, Stereo Reconstruction: Matching Pixels to Measure Depth follows the correspondence-to-depth calculation. A disparity map remains an image-space estimate. Producing a surface model, a set of 3D points, or measurements for a robot calls for further decisions about coordinate systems, uncertain matches, and missing data.
What early systems could—and could not—establish
Successful demonstrations often used textured scenes, controlled cameras, and objects within a useful depth range. Under those conditions, stereo could recover the shape of a tabletop arrangement or provide distance cues for a mobile robot. That success was not a complete interpretation of the scene. Stereo measures differences between views; it cannot, on its own, identify objects, infer surface materials, or reconstruct what neither camera sees.
Occlusion is a revealing failure case. At the edge of a foreground box, one camera may see a strip of background hidden from the other. No correct corresponding pixel exists for that strip. Forcing a match produces false depths near the boundary. A system needs to mark some regions as unmatched and treat the discontinuity as evidence about the layout.
Textureless areas present a different difficulty. Many positions along a uniformly painted wall look nearly identical. A smooth disparity estimate may be reasonable, but the images alone may not establish a precise match for each pixel. Repeating patterns pose the opposite problem: plenty of texture, with several nearly equivalent alignments. A polished depth map should not be read as equally certain everywhere.
Researchers also had to separate accuracy from completeness. A handful of well-supported 3D points might be accurate but cover little of the image. A dense system might fill nearly every pixel yet make systematic mistakes at reflective surfaces or object boundaries. Meaningful comparisons required a specified camera setup, ground truth, error measure, and treatment of pixels with no possible match.
A foundation for later vision systems
Stereo reconstruction established a pattern that recurs in computer vision: physical geometry limits the possible answers, while image evidence and assumptions about the scene select among them. The same division of labor appears in later multi-view reconstruction, visual navigation, and three-dimensional mapping. Better cameras and faster processors changed the scale of the work, not the problems of visibility and ambiguity identified in early research.
To examine an early stereo result, compare its disparity map with the original image pair at a foreground boundary. Find a strip visible to only one camera, then see whether the map leaves it unresolved or assigns it the foreground object’s depth. That narrow strip can reveal the method’s assumptions more clearly than the smooth surfaces around it.
